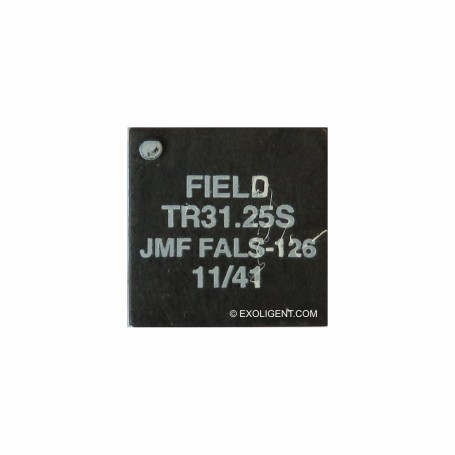

FieldTR 31.25 kb

The FIELDTR components are insulation transformers which supply a galvanic isolation between the FIELDRIVE line driver and the fieldbus physical medium.

FIELDTR associated with FIELDRIVE are implementing the Medium Attachment Unit (MAU) function.

The FIELDTR transformers have been developed to run in the half–duplex mode for all the speeds: 31.25 kbit/s,

1 Mbit/s, 2.5 Mbit/s, and 5 Mbit/s according the IEC 1158–2 (Physical Layer Specification and Service Definition) and to be compliant with highest levels of the EMC regulation.

.

Documentation FieldTR
