Fipwatcher is an analyzer of protocol of the network very easy to use for WorldFIP / FIP. It allows to acquire and display frame circulating on network WorldFIP, FIP, FIPIO et FIPWAY. For Fipway et FIPIO, the contents of frame are not decoded or interpreted, there is in hexadecimal. The frame are captured and their posted contents, in the case of erroneous wefts which are usually rejected by processors used on equipments FIP / WorldFIP.

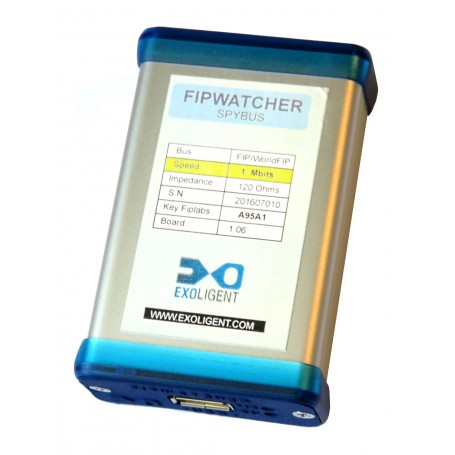

FIPWATCHER 7 consists from now on that of a single case USB. It exists in 3 versions ( 31.25 Kbits/s, 1Mbits/s ou 2.5 Mbits/s ).

.

2 - Software section

.
.

The software section of Fipwatcher is integrated into FIPLabs section analyze. For more technical explanations, go to our wiki "Fiplabs FIPWatcher analyze"

.

3 - Addtional functions
.

FIPWatcher has additional functions usefull for operator.

.

3-1 Server : This function allow visualization by ethernet frames captured by Fipwatcher enclosure.

.

3-2 Mnemonics : Essential to visualize the data of a sensor of temperature or a sensor of pressure for example.

FIPLabs interprets the data (made by bytes(octets)) to translate them into data understandable for an operator, a temperature or a pressure for example.

.

3-3 The graph : For temporal and graphic analyses of the mnemonic data

.

4 - Warranty

.

3 years

.

5 - Questions ?
.

For technicals or commercial questions, " customized" functions, fill the form below :
