Compatible : PowerFIP, FDM (*)

OS compatibles : Windows, Linux (*)

Function : Master / slave

Co-processor : PowerFIP / FullFIP2 (*)

Design PCB : recent

.

1 - FIP card description

.

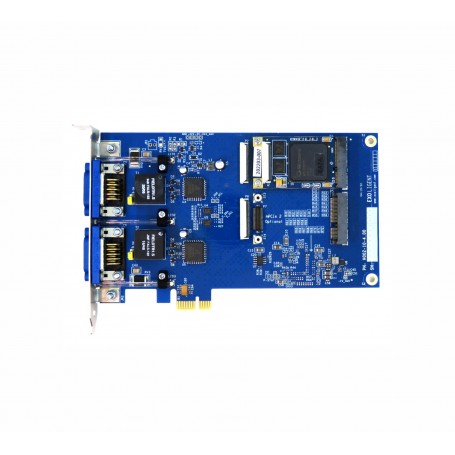

The PCI express - FIP card uses the PowerFIP or FullFip 2 communication controller allowing FIP WorldFIP functionalities such as the bus arbiter function. The IGLOO2 component serves as a communication bridge between the PCI express slot and the co-processor. The card is delivered with the FIPCORE API and PowerFIP API

.

The FIP card is supplied with the mPCIe card with PowerFIP or FullFIP2*. It is possible to have 2 FIP network ( with 2 mPCIe).

.

The card is bi-medium ( 1 bus arbitrator) , the FIP channel on the card is equipped with the FieldTR component, the Fieldrive component and an isolated sub-d 9.

More about PowerFIP...

.

2- Software compatibility

.

Exoligent regularly updates these drivers, software, DLLs operating under different operating systems in order to follow the evolution of existing technologies on the market, and according to the requests of its customers.

.

Manufacturers

Softwares or dll compliant

Systems compatibles

EXOLIGENT

PowerFIP

FIPCORE

FIPLABS

FIPBusbview (FF2 Win)

FIP-OPC

Other system

FDM

(FIP device manager)

Not provided

.

3 - Quote, special development, quantity discount ...

.

For a quote, discount for quantity, a particular development, please fill out the form below.

.

(*) : depend of microprocessor

(*): For versions with FullFIP2, specific conditions due at the end of FF2, thank you for contacting us.
